1K 50gsm Carbon Fiber Fabric
Ultra-Lightweight 1K Carbon Fiber Fabric 50gsm for Cosmetic Laminates, RC Models & Precision Composite Reinforcement

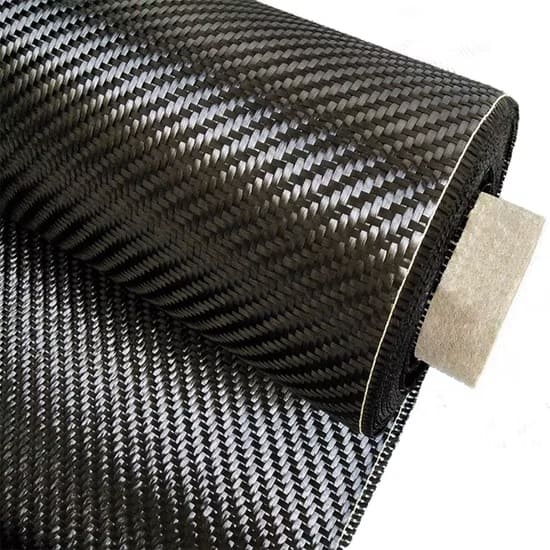

1K 50gsm Carbon Fiber Fabric is an ultra-lightweight woven carbon reinforcement cloth manufactured from 1,000 filament (1K) carbon fiber tows, designed for applications requiring minimal weight, excellent surface appearance, and high precision laminate finishing.
With an areal weight of only 50gsm, this carbon fiber fabric is ideal for:
- cosmetic carbon fiber top layers
- lightweight composite skins
- RC model parts and hobby composites
- UAV/drone shells and covers
- electronics casings and decorative laminates
Compared to heavier carbon fabrics, 50gsm 1K carbon cloth provides a finer weave appearance and easier laminate control when only a thin reinforcement layer is needed.
Key Features & Benefits
- Tow Size: 1K (fine tow for premium appearance)
- Areal Weight: 50gsm (ultra-lightweight carbon cloth)
- Smooth and fine weave surface finish for visible carbon parts
- Ideal for cosmetic surface layers and lightweight laminates
- Easy wet-out with epoxy resin
- Excellent conformity on small curves and detailed molds
- Helps achieve thin laminates with minimal added weight
- Compatible with epoxy, vinyl ester & polyester resins
- Suitable for hand lay-up, vacuum bagging, infusion & prepreg
What is 50gsm Carbon Fiber Fabric Used For?
50gsm carbon fiber fabric is mainly used when manufacturers need:
- very light reinforcement
- thin cosmetic laminates
- smooth carbon surface finish
- minimal resin consumption
It is especially popular in cosmetic laminates and precision composite manufacturing, where thicker fabrics are not required.
Typical Technical Specifications
| Property | Value |
| Product Name | 1K 50gsm Carbon Fiber Fabric |
| Tow Size | 1K |
| Areal Weight | 50gsm |
| Weave Type | Plain / Twill (available on request) |
| Fiber Orientation | 0° / 90° (Bidirectional) |
| Fabric Width | Up to 1000 – 1270 mm |
| Color | Black |
| Resin Compatibility | Epoxy / Vinyl Ester / Polyester |
| Supply Form | Roll |
Recommended Applications
UAV / Drone / RC Model Composites
- Lightweight shells and covers
- RC plane wings and skins
- Drone cosmetic panels
Consumer Electronics & Luxury Products
- Laptop and phone covers
- Premium composite casings
- Decorative carbon fiber laminates
Sports & Lifestyle Products
- Lightweight composite skins
- Cosmetic carbon layers
- Thin reinforcement parts
Decorative Composite Sheets
- Carbon laminate sheets
- Furniture surface laminates
- Premium decorative composite panels
Processing Methods & Resin Compatibility
- Suitable for Hand Lay-Up
- Vacuum Bagging
- Vacuum Infusion
- RTM
- Prepreg Processing (on request)
- Recommended resin: Clear Epoxy Resin for best gloss, strength, and surface appearance
- Use vacuum consolidation to remove air bubbles
- Apply UV-resistant clear topcoat to prevent yellowing
Quality Control & Export Supply
- Manufactured under ISO 9001 Quality Management System
- Consistent areal weight and uniform weave
- Controlled tow alignment for cosmetic appearance
- RoHS / REACH compliant
- Supplied with TDS + COA + batch traceability
- Export packing: moisture-proof roll packing + protective carton
Why Choose Our 1K 50gsm Carbon Fiber Fabric?
- Ultra-lightweight carbon cloth for precision composites
- Fine weave appearance for luxury cosmetic laminates
- Export-grade quality for OEM and bulk buyers
- Custom GSM / width / roll length available
- Worldwide shipping support
Frequently Asked Questions (FAQ’s)
